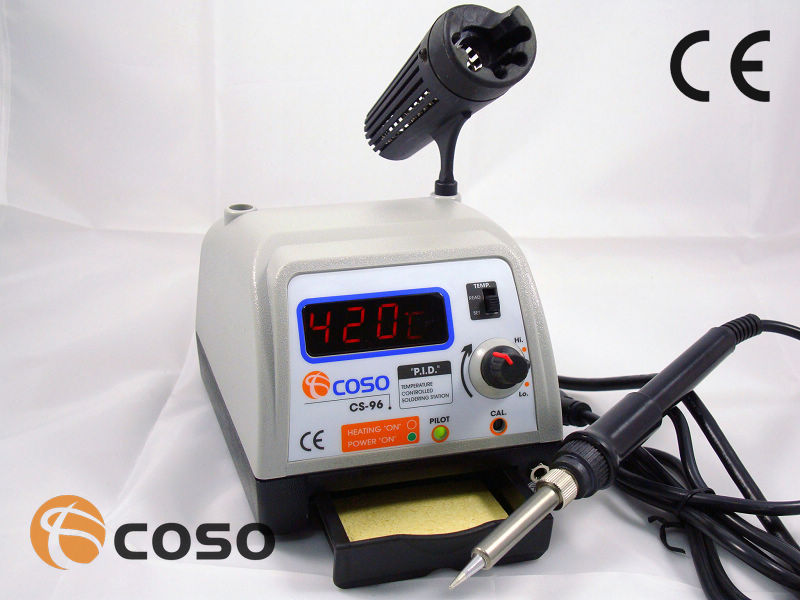

CS96 / CS96 ESD

P.I.D Temperature Control Soldering Station.

Model No	CS96	CS96 ESD
Temperature Range	200℃-500℃
Temperature Range	392℉-932℉
Power Consumption	24V AC/60W
Heating Element	96-H Ceramic Heater
Soldering Iron	CS96-I	CS96ESD-I
Standard Tip	900M-T-B

◎FEATURES

1. Used Japanese-made ceramic heater provides fast heat up and fast heat recovery.
2. The P.I.D. temperature control provides an extremely precise temperature control that assures an accurate steady temperature.
3. Digital display. The temperature range is 200℃-500℃.
4. Ceramic heater insulation rated over 100 Mohms at 400℃. Leakage is less than 0.4 mV.
5. Output voltage is 24V low voltage, to assure safety while is on the jobs. Zero voltage switching ensures low noise and greater protection for components. A socket outlet in the station can be connected to the ground to minimize any damage caused by the soldering iron power leakage.
6. After having removed the barrel and nut, the soldering iron tip of 90L series are also able to be replaced and fit to solder larger points.
7. The soldering station provides a temperature control lock to avoid the unwanted temperature adjustment by the operator.
8. P.I.D." represents Proportional Integral Derivatives.

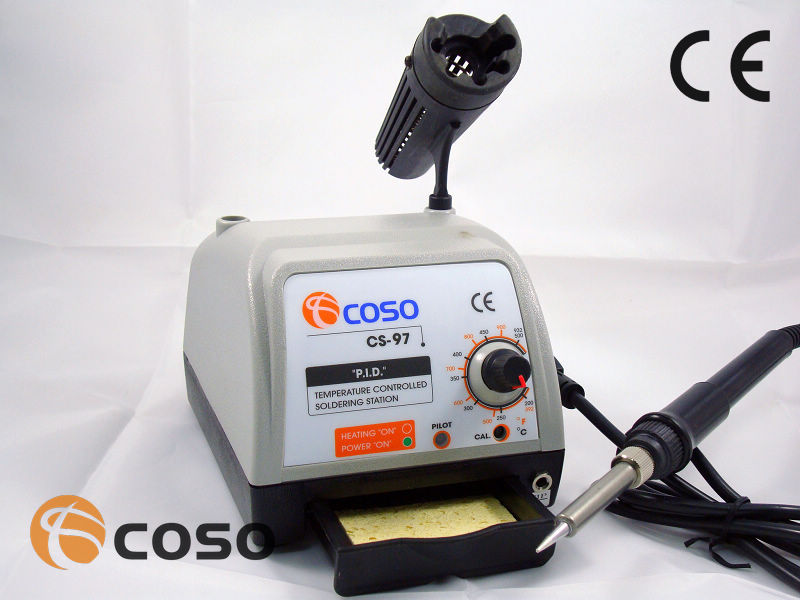

CS97 / CS97 ESD

P.I.D Temperature Control Soldering Station.

Model No	CS97	CS97 ESD
Temperature Range	200℃-500℃
Temperature Range	392℉-932℉
Power Consumption	24V AC/60W
Heating Element	97-H Ceramic Heater
Soldering Iron	CS97-I	CS97ESD-I
Standard Tip	900M-T-B

◎FEATURES

1. A long Japanese-made ceramic heater provides fast heat up and fast heat recovery.
2. The P.I.D. temperature control provides an extremely precise temperature control that assures an accurate steady temperature. The temperature range is 200℃-500℃.
3. Ceramic heater insulation rated over 100 Mohms at 400℃. Leakage is less than 0.4mV. A socket outlet in the station can be connected to the ground to minimize any damage caused by the soldering iron power leakage.
4. Output Voltoge is 24V low voltage, to assure safety while is on the jobs. Zero voltage switching ensures low noise and greater protection for components.
5. The soldering station incorporated a temperature control lock to avoid the unwanted temperature adjustment by the operator.
6. After having removed the barrel and nut, the soldering iron tip of 90L zseries are also able to be replaced and fit to solder larger points.
7. P.I.D." represents Proportional Integral Derivatives.

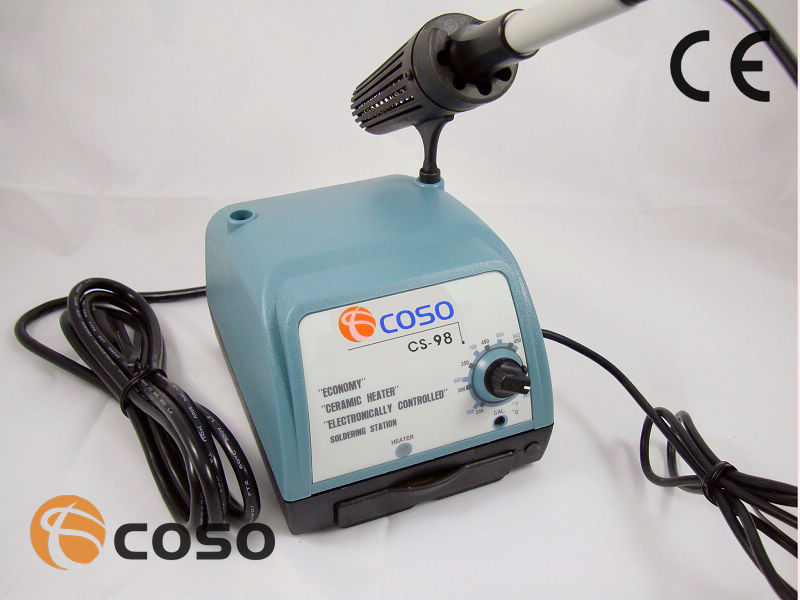

CS98 / CS98 ESD

Soldering Station

Model No	CS98	CS98 ESD
Temperature Range	200℃-450℃
Temperature Range	392℉-842℉
Power Consumption	45W at 350℃
Heating Element	98-H Ceramic Heater
Soldering Iron	CS98-I	CS98ESD-I
Standard Tip	900M-T-B

◎FEATURES

1. JF-98 Soldering station used Japanese-made ceramic heater,which has excellent quality of insulation, provides fast heat up and fast heat recovery.
2. Electronic temperature controlled, The temperature range is 200℃-450℃.
3. Ceramic heater insulation rated over 100 Mohms at 400℃. Leakage is less than 0.4mV. An equipment in the station connecting soldering iron tip to the ground resistance.
4. Zero voltage switching ensures low noise and greater protection for components.
5. The soldering station provides a temperature control lock to avoid the unwanted temperature adjustment by the operator.
6. After having removed the barrel and nut, the soldering irons of 90L series are also able to be replaced and fit to solder larger points.
7. Economic type at inexpensive price which is suitable for economical budget.

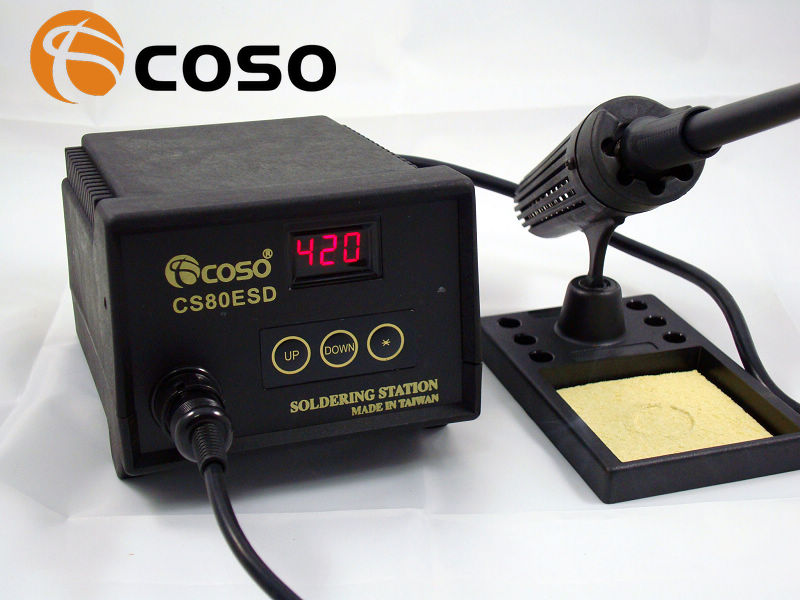

CS80 ESD

Soldering Station

Model No	CS80 ESD
Temperature Range	100℃-500℃
Temperature Range	212℉-932℉
Power Consumption	24V AC/80W
Heating Element	Ceramic Heater
Soldering Iron		CS80-I
Standard Tip	80-T-B

◎FEATURES

1. Used Japanese- made ceramic heater with silver conductor provides long lifetime and high power. It takes only 15 seconds to heat up to 420℃ from the ambient temperature guaranteeing fast heat up and fast heat recovery.
2. Output voltage is 24V80W low voltage, to assure safety while is on the jobs. It is suitable for lead-free tin silk.
3. Digital buttons for temperature control allows temperature adjustment and assures an accurate steady temperature.
4. The temperature range is 100℃-500℃. It allows setting up working temperature easily and provides a temperature control lock to avoid the unwanted temperature adjustment by the operator.
5. The sensor in silver conduct closely contact with standard tip assures high sensitive and fast heat recovery. It will auto-detect and show “S-E” in the display when disconnected.
6. High power heater saves energy. High functional standard tip assures environmental friendly.

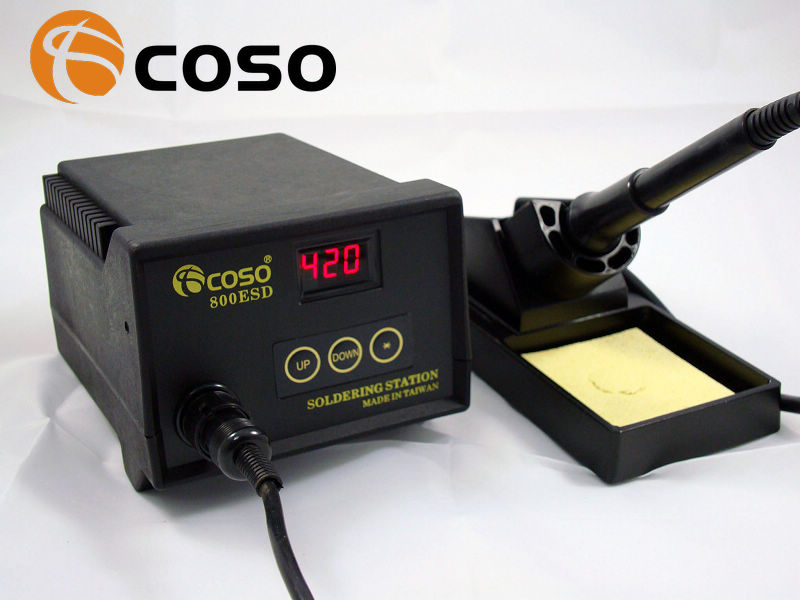

800 ESD

Soldering Station

Model No	800 ESD
Temperature Range	100℃-500℃
Temperature Range	212℉-932℉
Power Consumption	24V AC/80W
Heating Element	Ceramic Heater
Soldering Iron		CS800-I
Standard Tip	800-T-B

◎FEATURES

1. Used Japanese- made ceramic heater provides long lifetime, fast heat up and fast heat recovery. In addition, it is high power suitable for lead-free tin silk.
2. Output voltage is 24V low voltage, to assure safety while is on the jobs.
3. It is also compliable with 800-G soldering gun(手動出錫槍)
4. Digital temperature control buttons allows temperature adjustment and assures an accurate steady temperature.
5. The temperature range is 100℃-500℃. It allows to freely set up working temperature. The suggested working temperature is 420℃
6. The sensor is close to standard tip assuring high sensitive. It will auto-detect and show “S-E” in the display when disconnected.

900 ESD

Soldering Station

Model No	900 ESD
Temperature Range	100℃-500℃
Temperature Range	212℉-932℉
Power Consumption	24V AC/80W
Heating Element	Ceramic Heater
Soldering Iron		CS900-I
Standard Tip	900-T-B

◎FEATURES

1. Used Japanese- made ceramic heater provides long lifetime, fast heat up and fast heat recovery. In addition, it is high power suitable for lead-free tin silk.
2. Output voltage is 28V low voltage, to assure safety while is on the jobs.
3. It is also compliable with 900-G soldering gun (手動出錫槍)
4. Digital temperature control buttons allows temperature adjustment and assures an accurate steady temperature.
5. The temperature range is 100℃-500℃. It allows setting up working temperature easily. The suggested working temperature is 420℃
6. The sensor is close to standard tip assuring high sensitive. It will auto-detect and show “S-E” in the display when disconnected.
